G7109 Pro-Inside Mount Window Perf Pro
Product model: G7109 Pro
Product name: Inside Mount Window Perf Pro

The environmental one-way vision sticker of thermal insulation



The product character

1.The application of the Gecko Adhesive

The one-way vision sticker can be used with the Gecko Adhesive.

2.The energy-saving and environment-protecting

The incorporation of Gecko Adhesive and foaming PET can save the energy, as well as the watery Gecko Adhesive and renewable PET can protect the environment.

3.Strong thermal insulation

The particle sucker and the adhesive thickness of the foaming gecko adhesive, as well as the micro pore on the core layer of the foaming PET can function together to prevent the ultraviolet ray and maintain the heat, which delivers the better performance than the common sticker.

4.The application of nanometre foaming technology

Unlike the soluble adhesive common in the market, the environmental and technological foaming Gecko Adhesive is free of contaminants contained in the solvent. PET is characterized by the foaming technology and the micro pore on the core layer.

5.The low viscosity to the hand

The manual application of the adhesive is easily done because of the low viscosity to the hand during the sticking.

6.Greater endurance

Compared to PVC, PET is more endurable as it is resistant to the aging and wearing.

Advantages

1.The comprehensively environmental product

The foaming PET of one-way vision sticker is more agreeable to the environment due to the green material from its watery adhesive layer, the core PET material to the bottom release paper.

2.Targeting the office and household.

1) The thermal insulation: the foaming technology allows the foaming PET of one-way vision sticker on the glass to enhance the insulation performance.

2) The endurance: the resistance to aging and wearing ensures PET more suitable to the office and household than PVC.

3) The environmental material: There isn’t any chemical toxin in this watery adhesive, and PET doesn’t have stabilizer and softener that contained in PVC. Hence it is environmental-friendly in the daily life.

3.The renewable PET

The main material is from the renewable PET which won’t generate toxin gas after the incineration.

4.The repetitive sticking

Unlike the chemical principle of traditional adhesive sticking, the Gecko Adhesive, founded on the nano-scale particle viscosity, can allow the one-way vision sticker be used repetitively on the clean and smooth surface without harming the attachment in the ideal environment.

5.No adhesive left

The traditionally chemical water adhesive or oil adhesive can’t always be cleanly operated when it is used on the sticker detached from the adherent, but the Gecko Adhesive takes advantage of the particle sucker to form the vacuum by removing the air, which generates the strong physical absorption without any adhesive left after the detachment.

6.The easy operation

Without the necessity of the extra tape, the one-way vision sticker can be relocated or removed for many times. Hence the green hand can finish the work easily without the help of the professional.

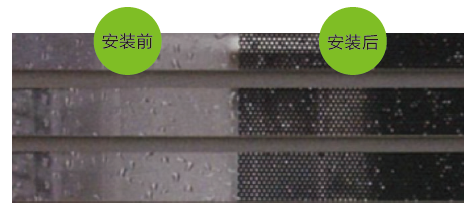

7.The clear visual field in the rainy weather

There will be less water bead on the window when the one-way vision sticker falls into place, which helps enhance the outdoor visibility.

Foaming PET—the One-way Vision Sticker with the Outstanding Thermal Insulation

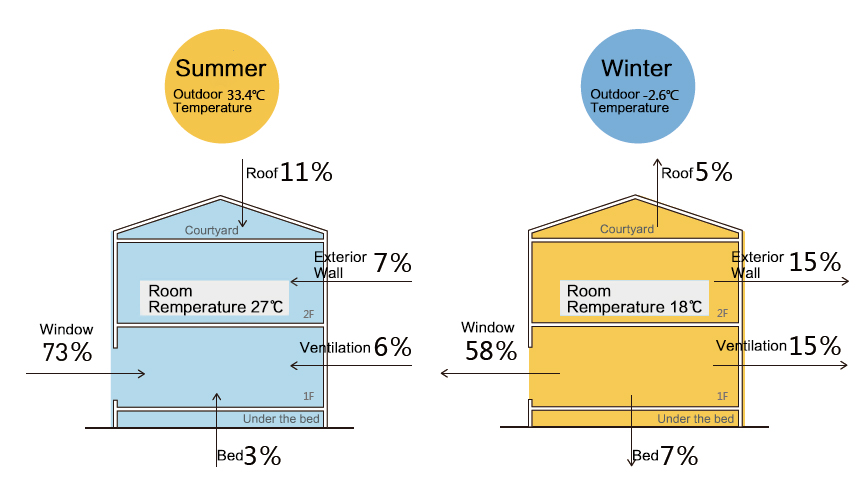

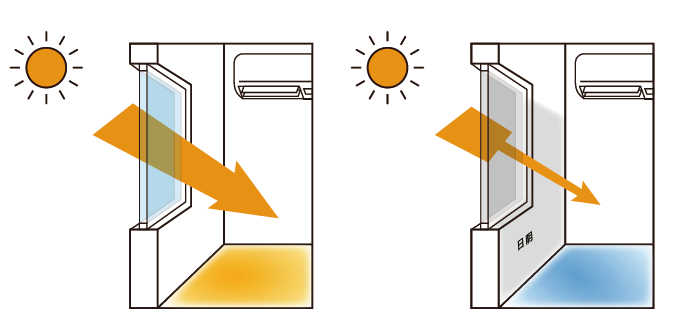

Compared to the conventional one-way vision sticker, the foaming one based on the nano-scale sucker in the vacuum and the core micro pore in the PET, can prevent more intense sunlight and ultraviolet rays in the summer and keep more indoor heat in the winter.





Applicability

1.It is mainly seen in the business and household sunshade, commerce and home one-way visibility, public space partition, among other things.

2.It is accessible in the window display of the convenience store, office, shopping mall, airport, bank, business building and others that use the glass as the partition.

3.The printing on the viscous side is suitable for the painting of solvent and low-solvent oil ink.

4.HP, Mootoom, Roland and other painters are recommended for better effect.

5.The printing on the viscous side must be conducted after the full dry and lamination. (further information is seen in the Guidance of Signscal Painting please).

Product parameters

1.The outlook: coiled material

2.The size: the breadth 1.37m * the length 12.5/25/30m (custom sizes available special order)

3.The visibility: 60/40,perforation diamater 1.6mm

4.The material: 50um appox, white/black foamed PET film

5.The adhesive: 80um appox, Gecko, environmentally water-based, suction type adhesive

6.The liner: 120g white release paper

7. Minimun Application Temperature:4℃

8. Service Temperature Range:-17℃~150℃

9. Dimensional Stability: Excellent

10. Humidity Resistance: Excellent

11. Solvent Resisitance: Excellent

12. Water Resisitance: Excellent

13. Expected Lifetime Exterior: Up to 5 year. Repeatable pasting for hundred of times on clean and smooth surface

14. Storage Stability: 2 years shelf life when stored at 21℃ and 50% relative humidity

(*attention: any parameter and performance is subject to the product that is actually received due to the adjustment to market fluctuation)
