G7109-Inside Mount Window Perf.
Product Code: G7109

Product Name: Inside Mount Perforated Window Film


An innovative one-way vision film coated printable adhesive for inside mounting and outside viewing


 ​
FEATURES

1. Application of the Gecko Adhesive

Creative one way vision window film coated with Gecko Adhesive

2. Printing on Adhesive Surface

Innovatively adhesive side can be printed with the exquisite graphics by excellent ink absorption of glue.

3. Environmental Foaming Adhesive

Unlike the traditional solvent adhesive, the environmental and technological foaming Gecko is free of toxic substances from solvents.

4. Low-tack

The manual installation of the self adhesive film is easily done because of the low tack feature.

5. Stronger Heat Insulation

Compared to the traditional one-way vision, the micro suction cups and thickness of Gecko Adhesive enjoys stronger heat insulation.

ADVANTAGES

1. Viewing Outside by Inside Mounting

The adhesive side printed with exquisite advertising graphics can be stuck on the glass indoor to allow people to watch outdoor. Also applications for airport, subway and others that use the glass as the partition.

2. Heat Insulation

Compared to the traditional one-way vision, the gecko-adhesive can prevent more intense sunlight and ultraviolet rays in the summer and keep more indoor heat from escaping through the window in the winter.

3. Repeatable & Removable

Unlike the chemical principle of traditional adhesive, the Gecko Adhesive, founded on the nano-scale suction cups, can allow the one-way vision films be used repetitively on the clean and smooth without harming the attachment in the ideal environment.

4. No Residue Left

The traditionally chemical water adhesive or oil adhesive can’t always be cleanly operated when it is used on the sticker detached from the adherent, but the Gecko Adhesive takes advantage of the suction cups to form the vacuum by removing the air, which generates the physical strong absorption without any adhesive left after the detachment.

5. Easy Installation

No need of the extra tape, the one-way vision window film can be relocated or removed for many times. Hence the novice can finish the work easily.

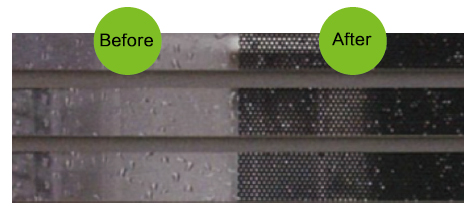

6. Keep Clear Vision in Rainy Days

There will be less water bead on the window when the one-way vision film falls into place, which helps enhance the outdoor visibility.



WHY WE NEED INSIDE MOUNTING

1. Inside mounting won't violate the local regulation as some countries strictly curb even prohibit the outdoor sticker for advertisement.

2. Indoor pasted films won't be easily damaged, which allows the integrity and aesthetics of the advertisement.

3. It avoids outdoor work on high buildings.

4. It is not necessary to obtain the installation permission or scaffold establishment.

5. Easy pasting is accessible to anyone without the aid of the professional.

APPLICABILITY

1. Advertisement printing, business and household sunshade, commerce and home one-way visibility, public space partition.

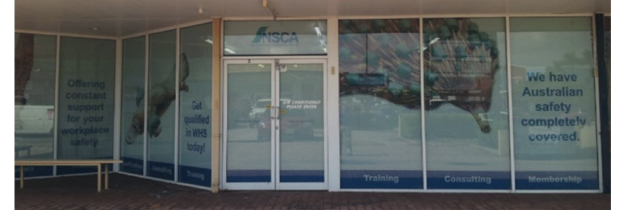

2. Window display of the convenience store, office, shopping mall, airport, bank, business building and other areas which use the glass as the partition.

3. Suitable for solvent, eco-solvent inks.

4. HP, MUTOH, ROLAND printers recommended for better effect.

5. Printing on Gecko adhesive side must be conducted after the full dry and lamination.
(further information is seen in the Guidance of Signscal Painting please)


PRODUCT PARAMETERS

Outlook: Rolls

Size: width 1.37m * length 12.5/25/30m (custom sizes available by special order)

Visibility: 60/40

Face Material: 140 um appox. White/Black calendered PVC film

Adhesive: 80 um appox. Gecko, environmentally water-based, suction type adhesive

Liner: 58 um approx. Clear release PET film

Minimun Application Temperature:4℃

Service Temperature Range:-17℃~60℃

Dimensional Stability: Fair

Humidity Resistance: Fair

Solvent Resisitance: Fair

Water Resisitance: Fair

Expected Lifetime Exterior: Up to 1 year. Repeatable pasting for hundred of times on clean and smooth surface.

Storage Stability: 2 years shelf life when stored at 21℃ and 50% relative humidity.



*Attention: Any parameter and performance is subject to the product that is actually received due to the adjustment to market fluctuation
